Mini Plug-in PLC (Planar Lightwave Circuit) Splitter

Mini Plug in PLC Splitter – input/output 0.9mm fibers ,SC connectors with adapters

Category:
Mini Plug in PLC Splitter – input/output 0.9mm fibers ,SC connectors with adapters

Description:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features:

  • Low Insertion loss
  • Low PDL
  • Excellent Mechanical
  • Telcordia GR-1209 & GR-1221
  • Wide Operating Wavelength:From 1260nm to 1650nm
  • Wide Operating Temperature: From -40°C to 85°C
  • High Reliability and Stability

Applications:

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution
  • Test Equipment

Compliance:

  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • RoHS



Type 1×2 1×4 1×8 1×16 1×32 1×64
Fiber Type Single mode G657A1 or customized made
Operating Wavelength 1260~1650nm
Insertion Loss (dB) Typical 3.9 7.1 10.3 13.3 16.3 19.8
Maximum 4.1/4.3 7.4/7.6 10.5/10.8 13.8/14.0 16.8/17.0 20.8/21.3
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5 2.0
Polarization Dependent Loss(dB) Max 0.15 0.15 0.2 0.2 0.2 0.3
Directivity(dB) MINI 55
 Return Loss (dB) MINI UPC≥50  APC≥60
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85



What Is PLC Splitter?

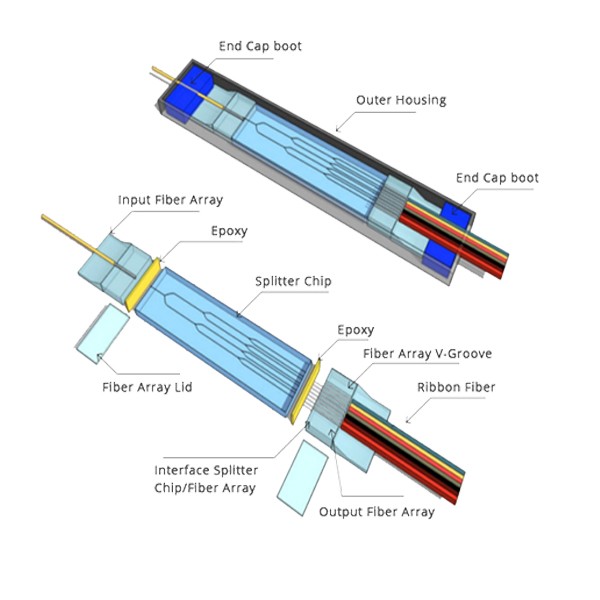

PLC splitter is based on planar lightwave circuit technology. It comprises three layers: a substrate, a waveguide, and a lid. The waveguide plays a key role in the splitting process which allows for passing specific percentages of light. So the signal can be split equally. In addition, PLC splitters are available in a variety of split ratios, including 1:4, 1:8, 1:16, 1:32, 1:64, etc. They also have several types, such as bare PLC splitter, blockless PLC splitter, fanout PLC splitter, mini plug-in type PLC splitter, etc. Therefore, if high split counts, small package size, and low insertion loss are required, you are suggested to choose PLC splitter rather than FBT splitter. The following table shows the advantages and disadvantages of PLC splitter.

Advantages Disadvantages
  • Suitable for multiple operating wavelengths (1260nm – 1650nm).
  • Equal splitter ratios for all branches.
  • Compact configuration, smaller size, small occupation space.
  • Good stability across all ratios.
  • High quality, low failure rate.
  • Complicated production process.
  • Costlier than the FBT splitter in the smaller ratios.
