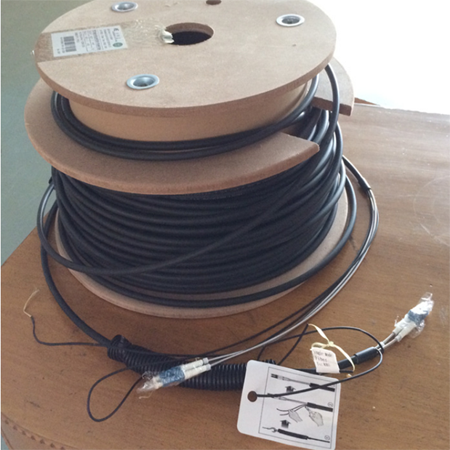

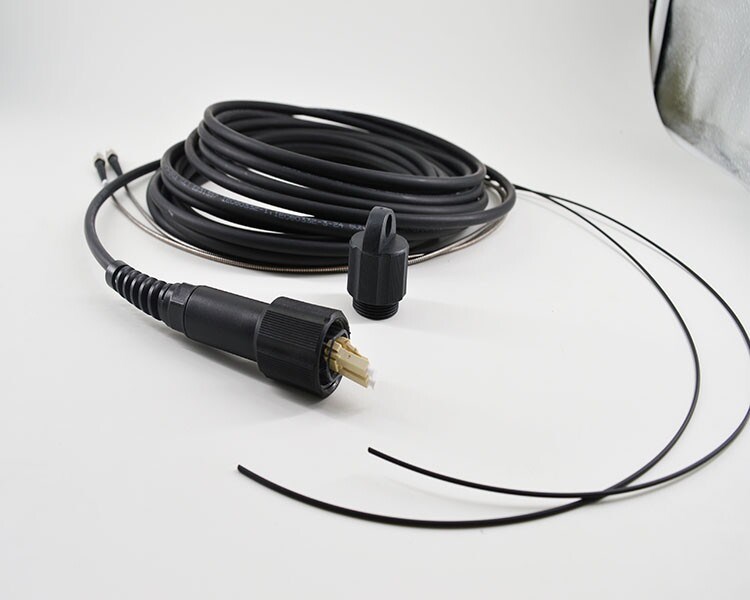

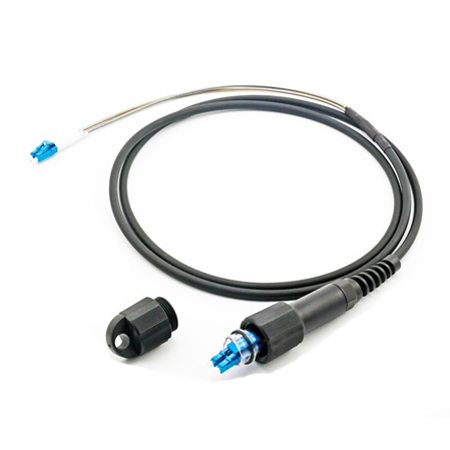

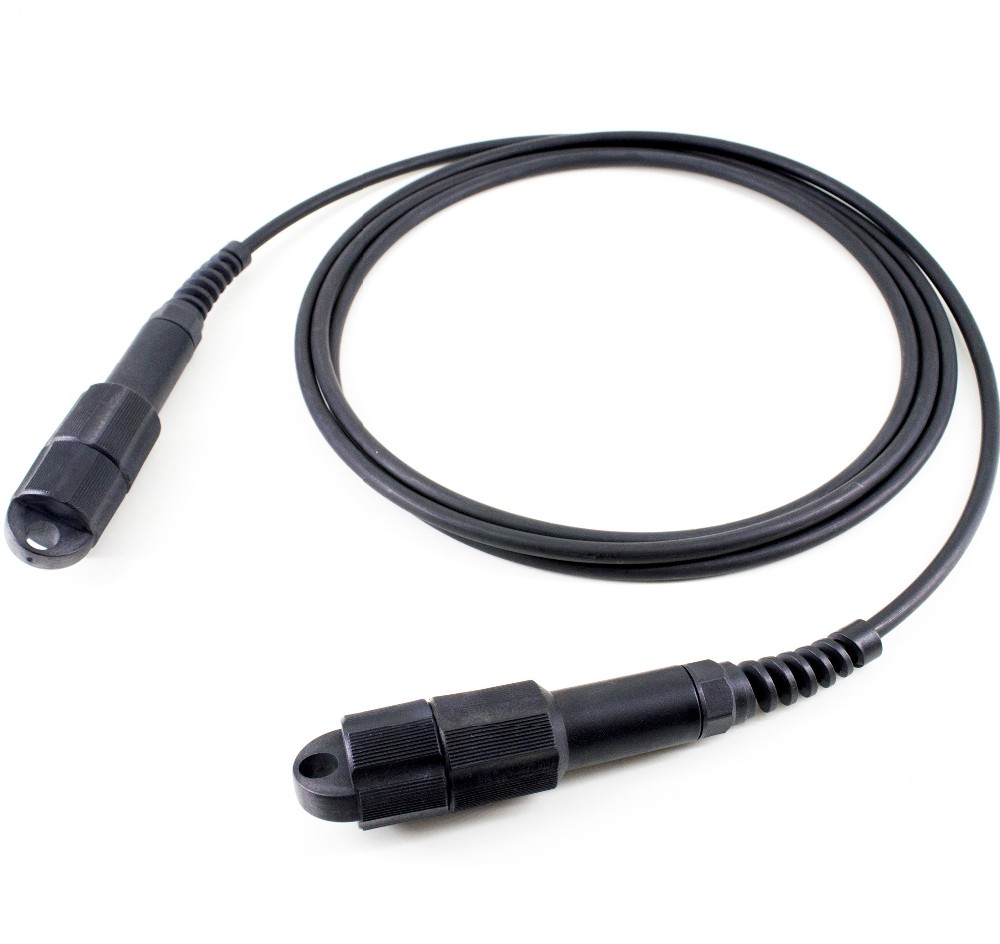

PDLC/DLC outdoor fiber optic patch cord protected branch cable for FTTA/FTTH/base station
Features
The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
1.Standard Duplex LC connector, well connected with standard LC adaptor
2.Available Single mode and Multimode
3.IP67 protection, salt-mist proof, humidity proof, dust proof
4.Low insertion/return loss, steady optical transmitting.
5.Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Applications
1.Widely used in FTTA & FTTH
2.Used for 3G 4G base station
3.BBU, RRU, RRH, LTE
2.Cable Parameters
|
Fiber Count
|
Cable Dimension MM |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
|
Long term |
Short Term |
long term |
Short term |
Dynamic
|
Static
|
||||
|
2
|
7.0
|
42.3
|
200
|
400
|
1100
|
2200
|
20D
|
10D
|
-30-+70
|
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2.The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3,D is outer diameter of the round cable; |
|||||||||
3.Connector Specification
|
ITEM
|
PARAMETER
|
|
Connector type
|
DLC/UPC
|
|
Insertion Loss
|
<=0.3db
|
|
Return Loss
|
>=35db
|
|
Fiber mode
|
Multi-mode,50/125
|
|
Operating wavelength
|
850nm, 1300nm
|
|
Test wavelength
|
850nm, 1300nm
|
|
Repeatability
|
<=0.1
|
|
Interchangeability
|
<=0.2dB
|
|
Durability
|
<=0.2dB
|
|
Fiber Length
|
1m, 2m….. any length optional.
|
|
Length and tolerance
|
10cm
|
|
Operating Temperature
|
-40C ~ +85C
|
|
Storage Temperature
|
-40C ~ +85C
|
