Description:
CTFIBER 100G QSFP28 transceivers include SR4,CWDM4, LR4 and ER4 lite, adopt MPO or LC interface and compatible with IEEE802.3bm, SFF-8636 and other standards.They have the characteristics of low power consumption, small size and high speed, and is beneficial to increasing the capacity of the data center, improve the port density and reduce the power consumption. It is widely applied in large data center, 100G Ethernet, ITU-T OTU4 and other environments.
Support line rates from 103.125 Gbps to 111.81 Gbps
COB technology platform for 100m reach over MMF and Integrated LAN WDM TOSA / ROSA for 10-30 km reach over SMF
Digital Diagnostics Monitoring Interface
Low power dissipation
Case operating temperature range:0°C to 70°C
Features
Support line rates from 103.125 Gbps to 111.81 Gbps
Up to 100m transmission on MMF and 2km-30km transmission on SMF
Electrically hot-pluggable
No external reference clock
Digital Diagnostics Monitoring Interface
Compliant with IEEE802.3bm, SFF-8636 and QSFP28 MSA
Case operating temperature range:0°C to 70°C
Power dissipation < 2W, < 3.5W, < 4W, < 5W
| Part Number | Data Rate | Wavelength (nm) | Source | Avg.Launch Power (dBm) | Avg.Rx Power (dBm) | Fiber Type | Interface Connector | Reach |
| QSFP28 | ||||||||

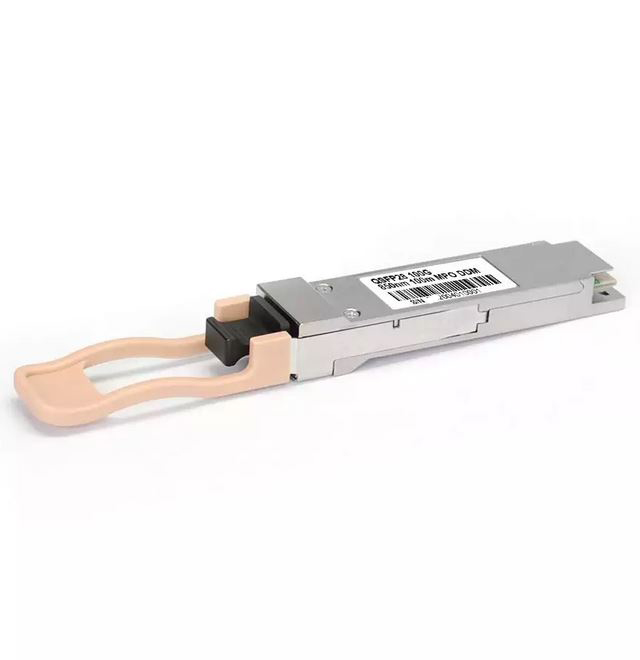

| CTF-QSFP28-SR4 | 100G | 850 | VCSEL+PIN | -8.4~+2.4 | ≦-10.3 | MMF | MPO | 100m |
| CTF-QSFP28-SR4-CPRI | 100G | 850 | VCSEL+PIN | -8.4~+2.4 | ≦-10.3 | MMF | MPO | 100m |
| CTF-QSFP28-IR4 | 100G | 1271-1331 | DFB+PIN | -6.5~+2.5 | ≦-11.5 | SMF | LC | 2km |
| CTF-QSFP28-CWDM-IR4 | 100G | 1271-1331 | DFB+PIN | -4.3~+4.5 | ≦-13 | SMF | LC | 10km |

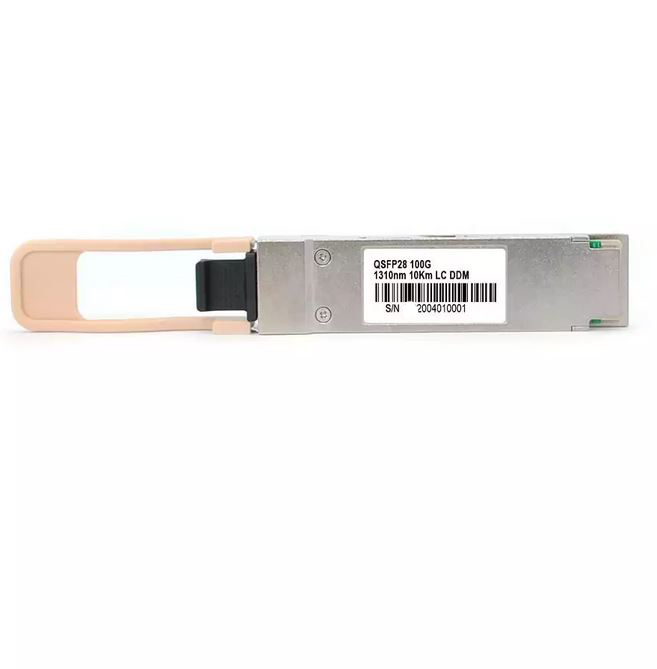

| CTF-QSFP28-LR4 | 100G | 1294-1310 | DFB+PIN | -4.3~+4.5 | ≦-10.6 | SMF | LC | 10km |
| CTF-QSFP28-ER4 | 100G | 1294-1310 | EML+PIN | -2.5~+6.5 | ≦-16.65 | SMF | LC | 30km |
| CTF-QSFP28-ZR4 | 100G | 1294-1310 | EML+APD | -2.5~+6.5 | ≦-16.65 | SMF | LC | 80km |
